IPS for Wedding Hall and Event Venue Bangladesh — Temporary Power Backup Solutions
Quick Answer: Wedding halls and event venues in Bangladesh need 5–16kWh of backup power to keep sound systems, lighting, fans, and catering equipment running during load-shedding. For small venues (up to 200 guests), a single HiTHIUM HeroEE 2 (2kWh) handles essential loads. For medium venues (200–500 guests), the HiTHIUM MaxPower 8 AIO (8kWh) covers sound, lighting, and fans. For large wedding halls (500+ guests), the HiTHIUM HeroEE 16 (16kWh) delivers full-event backup power.
Power outages during a wedding reception or event are not just inconvenient — they ruin the atmosphere, disrupt sound systems, and can cause catering losses. In Bangladesh, where load-shedding often peaks during evening hours (6 PM–11 PM) when most events take place, having reliable backup power is not optional. It is a business necessity.
This guide covers exactly how much IPS capacity your venue needs, which products match different venue sizes, and how to set up temporary power backup that keeps your events running smoothly without diesel generators or noisy alternatives.
Why Wedding Halls and Event Venues Need IPS
Unlike residential backup (where you just need a few lights and fans), event venues have complex power demands that peak during exactly the hours when load-shedding is most likely:
- Sound systems: DJ equipment, speakers, microphones, and mixing consoles draw 500–2000W continuously during an event
- Lighting: LED stage lights, decorative lighting, and ambient lighting can add 300–1500W to the total load
- Fans and cooling: Ceiling fans and portable fans for guest comfort (critical in Bangladesh’s heat) — 100–500W per fan
- Catering equipment: Buffet warmers, refrigerators, and occasionally small ovens — 500–2000W depending on setup
- Registration and POS: Cash registers, computers, and credit card machines — 200–500W
- Emergency lighting: Exit signs and emergency lights that must stay on by code — 50–200W
A typical small wedding hall event draws 2–5kW during normal operation, with peaks of 8–12kW during key moments (first dance, DJ sets, buffet service). Your IPS capacity must handle both the sustained load and these peaks.
Venue Size vs. IPS Capacity Guide
Choosing the right IPS capacity depends on your venue size, guest count, and equipment load. Here is a practical breakdown:
| Venue Type | Guest Count | Typical Load | Recommended IPS | Estimated Backup Time |
|---|---|---|---|---|
| Small Function Room | Up to 100 | 1–2kW | HeroEE 2 (2kWh) | 4–8 hours |
| Medium Banquet Hall | 100–300 | 2–4kW | L12314ES (4kWh) or MaxPower 8 AIO (8kWh) | 4–12 hours |
| Large Wedding Hall | 300–500 | 4–8kW | MaxPower 8 AIO (8kWh) | 3–6 hours |
| Premium Event Center | 500–800+ | 8–15kW | HeroEE 16 (16kWh) or multi-unit setup | 3–5 hours |
| Outdoor Temporary Setup | Any | 1–3kW | HeroEE 1 (1kWh) + HC200 Solar Panel | 2–5 hours |
Rule of thumb: Multiply your venue’s peak wattage by 1.5 to get the minimum IPS capacity in watt-hours. This buffer ensures you can handle peak moments without overloading the system.
Featured Products: Exact Specifications for Event Venues
HiTHIUM HeroEE 2 — 2kWh Portable IPS for Small Venues
The HeroEE 2 is a compact, portable power station ideal for small function rooms, private dining areas, and registration desks. It delivers 1000W pure sine wave output, enough to power sound systems, lighting, and basic catering equipment for small gatherings.
| Specification | Details |
|---|---|
| Model | HiTHIUM HeroEE 2 |
| Battery Capacity | 2009.6Wh (2kWh) |
| Battery Chemistry | LiFePO4 (314Ah cells) |
| AC Output | 1000W Pure Sine Wave, 220V 50Hz |
| Solar Input | 12–50V DC, 450W max |
| AC Charging Input | 180–260V AC, 50/60Hz |
| Cycle Life | 11,000 cycles @ 70% SOH |
| Depth of Discharge | 95% |
| Dimensions | 280 x 210 x 311 mm |
| Weight | 18.5 kg |
| Best For | Small function rooms, registration desks, DJ backup, outdoor stalls |
| Price | BDT 88,600 |
View Full Product Details and Order →

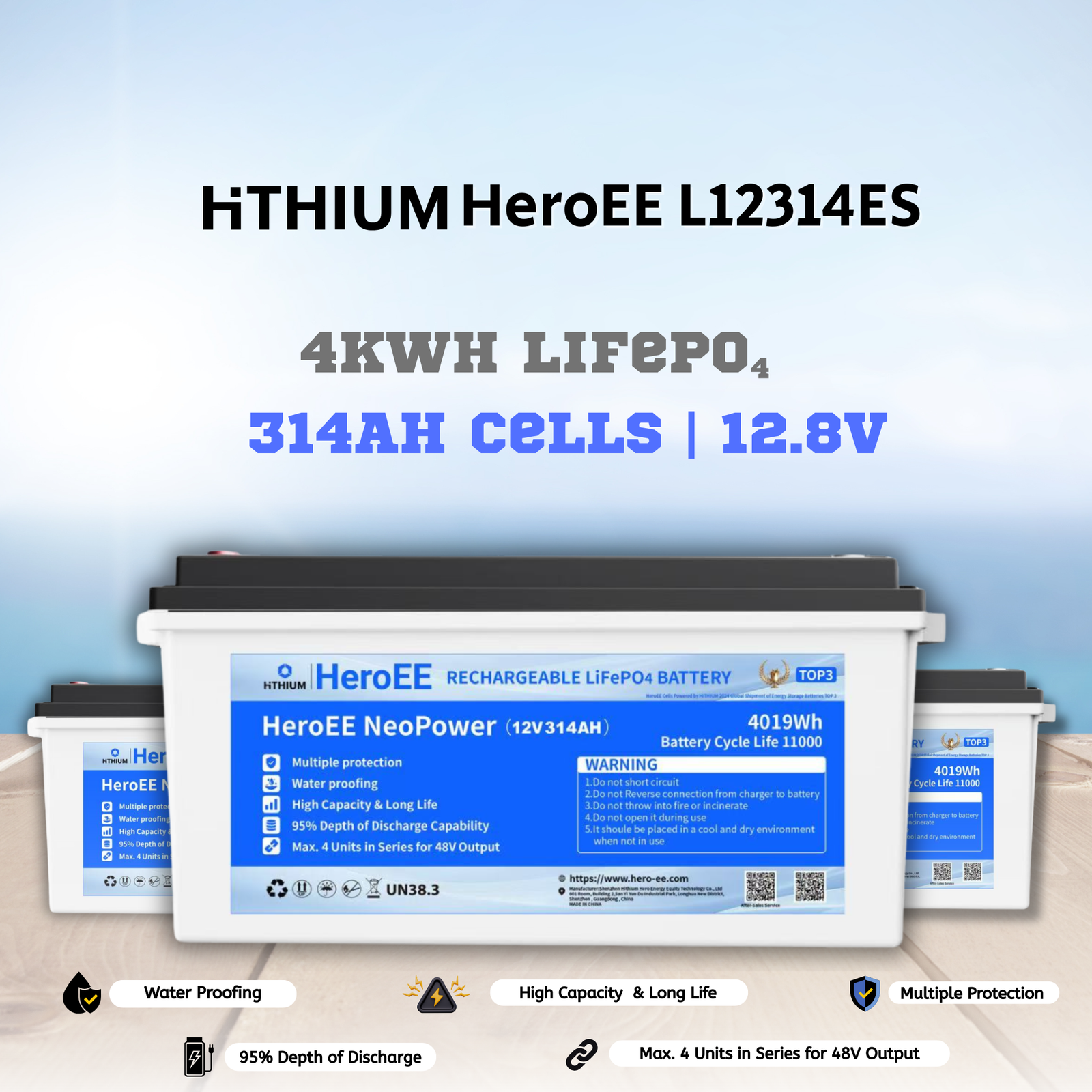

HiTHIUM L12314ES — 4019Wh Battery for Medium Venues
The L12314ES is a standalone 4kWh battery that pairs with your existing inverter. It is ideal for medium banquet halls that already have a UPS/inverter system and need to upgrade to lithium backup for longer runtime and better reliability.
| Specification | Details |
|---|---|
| Model | HiTHIUM HeroEE L12314ES |
| Battery Capacity | 4019Wh |
| Battery Chemistry | LiFePO4 (Grade-A cells) |
| Rated Voltage | 12.8V DC |
| Continuous Current | 150A |
| Cycle Life | 11,000 cycles @ 70% SOH |
| Depth of Discharge | 95% |
| IP Rating | IP67 (dust and water resistant) |
| Expandable | Up to 4 units in series for 48V systems |
| Dimensions | 502 x 186 x 243 mm |
| Weight | 29.25 kg |
| Certifications | UN38.3, MSDS |
| Price | BDT 84,600 |
View Full Product Details and Order →
HiTHIUM MaxPower 8 AIO — 8kWh All-in-One for Large Venues
The MaxPower 8 AIO is the complete solution for large wedding halls. It combines an 8kWh battery, 5kW inverter, and 9kW MPPT solar charger in a single unit — eliminating complex wiring and ensuring instant switchover during outages. This is the most popular choice for venues hosting 300–500+ guest events.
| Specification | Details |
|---|---|
| Model | HiTHIUM HeroEE MaxPower 8 AIO |
| Battery Capacity | 8038.4Wh (314Ah) |
| Battery Chemistry | LiFePO4 |
| Nominal Voltage | 25.6V |
| Inverter Rated Power | 5000W / 5000VA |
| Output Voltage | 208/220/230/240V |
| MPPT Solar Input | Up to 9000W (180% oversizing) |
| MPPT Efficiency | 99.5% |
| Switchover Time | 10ms (UPS mode) |
| Cycle Life | 11,000 cycles @ 100% DOD |
| LCD Display | Real-time SOC, voltage, faults |
| Dimensions | 500 x 230 x 757 mm |
| Weight | 75 ± 2 kg |
| Price | BDT 322,150 |
View Full Product Details and Order →
HiTHIUM HeroEE 16 — 16kWh for Premium Event Centers
For the largest venues hosting 500+ guests with full AV setups, multiple catering stations, and extensive decorative lighting, the HeroEE 16 delivers 16kWh of industrial-grade capacity. It supports solar and AC charging, can run high-load equipment, and operates silently — critical for formal events.
| Specification | Details |
|---|---|
| Model | HiTHIUM HeroEE 16 |
| Battery Capacity | 16kWh |
| Battery Chemistry | LiFePO4 (Grade-A cells) |
| Rated Voltage | 51.2V DC |
| Discharge Voltage Range | 43.2–56.8V DC |
| Cycle Life | 11,000+ cycles @ 100% DOD |
| Solar Charging Input | Up to 11kW, 12–150V DC |
| Charging Options | Solar + AC grid (hybrid capable) |
| BMS Protection | Over-voltage, over-current, short-circuit, over-temperature |
| Lifespan | 15+ years with proper maintenance |
| Applications | AC, refrigerator, catering equipment, sound systems, servers |
| Price | BDT 380,300 |
View Full Product Details and Order →
How to Calculate Your Venue’s Power Requirements
Before purchasing IPS, calculate your actual power needs. Here is a simple method:
- List all equipment: Write down every electrical item that runs during an event — sound system, lights, fans, catering equipment, registration computers, decorative elements.
- Find wattage ratings: Check each item’s wattage label or manual. For items without labels, use typical values: ceiling fan (75W), LED bulb (10W), DJ speaker system (500–1500W), buffet warmer (500W each), LED stage light (100–300W each).
- Calculate total wattage: Add all items that run simultaneously. This gives your continuous load.
- Add peak factor: Multiply total by 1.5 to account for startup surges (motors, compressors, large speakers).
- Determine backup hours: Decide how many hours of backup you need (typically 4–6 hours for evening events in Bangladesh).
- Formula: IPS Capacity (Wh) = Total Wattage x Hours x 1.5
Example calculation for a 300-guest wedding hall:
- Sound system: 1000W
- Stage lighting: 800W
- Ceiling fans (10 units): 750W
- Buffet warmers (3 units): 1500W
- Registration computer + printer: 300W
- Decorative lights: 200W
- Total continuous load: 4,550W
- With 1.5x peak factor: 6,825W
- For 4-hour backup: 4,550 x 4 = 18,200Wh
In this example, you would need at least 18kWh of capacity — which means the HeroEE 16 (16kWh) paired with a smaller unit, or two MaxPower 8 AIO (8kWh) units for redundancy.
LiFePO4 vs Diesel Generator for Event Venues
Many venues still rely on diesel generators for backup power. Here is why lithium IPS is a better choice for modern event venues:
| Factor | Diesel Generator | LiFePO4 IPS |
|---|---|---|
| Noise Level | 65–85 dB (loud, disrupts events) | 0 dB (silent operation) |
| Fuel Cost Per Event | BDT 3,000–8,000 (diesel) | BDT 0 (grid/solar recharge) |
| Maintenance | Regular oil changes, filters, servicing | Zero maintenance |
| Emissions | Exhaust fumes, carbon monoxide risk | Zero emissions, eco-friendly |
| Setup Time | 15–30 minutes (fuel, startup) | Instant (automatic switchover) |
| Reliability | Fuel supply dependent, mechanical failures | 11,000+ cycle lifespan, smart BMS |
| 5-Year Total Cost | BDT 500,000–800,000 (fuel + maintenance) | BDT 88,600–380,300 (one-time) |
| Guest Experience | Noise and fumes disrupt formal events | Silent, clean, professional |
Verdict: For wedding halls and event venues where guest experience matters, LiFePO4 IPS eliminates noise complaints, fuel logistics, and maintenance headaches while providing instant, reliable power backup.
Setup Tips for Event Venue IPS
- Pre-charge before events: Ensure your IPS is fully charged before each event. For the MaxPower 8 AIO, charge to 100% using grid power the night before.
- Position strategically: Place the IPS unit near the main distribution panel. For portable units like the HeroEE 2, keep it accessible for quick relocation between events.
- Separate critical loads: Connect essential equipment (sound, lighting, registration) to the IPS circuit, while non-essential loads (decorative lighting, extra fans) can remain on grid power only.
- Test before guests arrive: Simulate a power cut to verify switchover time and ensure all connected equipment works properly on IPS power.
- Solar supplementation: For outdoor or semi-outdoor venues, add HiTHIUM HC200 solar panels to extend backup time and reduce grid dependence during daytime events.
- Monitor battery level: Use the MaxPower 8 AIO’s LCD display or the HeroEE 16’s BMS to track battery SOC during events. Plan to reduce load if SOC drops below 20%.
- Keep ventilation clear: While LiFePO4 is safer than other chemistries, ensure adequate airflow around the unit during extended use.
Multi-Unit Configurations for Large Venues
For venues that need more than 8kWh, HiTHIUM products support flexible configurations:
- 2x MaxPower 8 AIO: 16kWh total capacity with 10kW continuous output — ideal for venues with 400–600 guests
- 4x L12314ES in series: Creates a 48V, 16kWh system when paired with a compatible 48V inverter — best for venues with existing inverter infrastructure
- 1x HeroEE 16 + 1x L12314ES: 20kWh total — provides complete backup for the largest venues with full AV and catering loads
- Portable + permanent hybrid: Use a MaxPower 8 AIO as permanent installation and add HeroEE 2 units for additional portable capacity during peak events
Frequently Asked Questions
How long can an IPS power a wedding hall event?
It depends on your equipment load and IPS capacity. A 2kWh HeroEE 2 can power a small venue (1–2kW load) for 4–8 hours. An 8kWh MaxPower 8 AIO can run a medium venue (3–4kW load) for 5–8 hours. A 16kWh HeroEE 16 can support a large venue (5–8kW load) for 4–6 hours. Always size your IPS to handle your peak load plus a 1.5x safety margin.
Can I use IPS with my existing venue wiring?
Yes. The HiTHIUM MaxPower 8 AIO connects directly to your venue’s main distribution board and provides 220V AC output compatible with standard Bangladesh wiring. For standalone batteries like the L12314ES, you will need a compatible inverter (12.8V input) to convert DC to AC. The HeroEE 2 and HeroEE 16 are self-contained units with built-in inverters — just plug in and use.
Is IPS safe to use indoors at event venues?
Absolutely. LiFePO4 batteries are the safest lithium chemistry available. They produce zero emissions, operate silently, and are thermally stable — unlike diesel generators which produce carbon monoxide and fire risk. HiTHIUM batteries include multi-layer BMS protection (overcharge, over-discharge, short-circuit, over-temperature) and carry UN38.3 and MSDS certifications. Indoor use at venues is not just safe — it is recommended.
How do I calculate the right IPS size for my venue?
List all equipment that runs during an event (sound system, lights, fans, catering, computers), find their wattage ratings, and add them up for total continuous load. Multiply by 1.5 for peak factor. Then multiply by your required backup hours. For example: 4,550W load x 4 hours = 18,200Wh minimum capacity. Contact HiTHIUM Bangladesh for a free consultation — we will help you calculate the exact requirements for your specific venue setup.
Can the IPS run air conditioners at event venues?
Yes, but AC units are high-load appliances (typically 1,000–2,000W each). The MaxPower 8 AIO’s 5kW output can run 2–3 AC units simultaneously, while the HeroEE 16 can handle 4–6 AC units. However, running AC will significantly reduce backup time. For venues that rely heavily on AC, consider the HeroEE 16 or a multi-unit configuration to maintain adequate runtime.
What is the cost of IPS for a wedding hall in Bangladesh?
HiTHIUM offers IPS solutions for every venue size: HeroEE 2 (2kWh) at BDT 88,600 for small venues, L12314ES (4kWh) at BDT 84,600 for medium venues, MaxPower 8 AIO (8kWh) at BDT 322,150 for large venues, and HeroEE 16 (16kWh) at BDT 380,300 for premium event centers. Unlike diesel generators that cost BDT 500,000–800,000 over 5 years in fuel and maintenance alone, HiTHIUM IPS is a one-time investment with 15+ years of reliable service.
Does the IPS support solar charging for outdoor events?
Yes. All HiTHIUM products support solar charging. The MaxPower 8 AIO has a built-in 9kW MPPT solar charger for fast daytime charging. The HeroEE 16 supports up to 11kW solar input. For portable outdoor events, pair the HeroEE 1 or HeroEE 2 with HiTHIUM HC200 foldable solar panels for instant, renewable power backup that extends runtime without grid dependence.
Get a Free Venue Assessment
Every venue has unique power requirements. HiTHIUM Bangladesh offers free consultations to help you choose the right IPS configuration for your wedding hall, banquet center, or event venue. We assess your equipment load, venue layout, and event schedule to recommend the optimal solution.
Contact HiTHIUM Bangladesh:
- Website: hithiumbd.com
- Browse all products: Product Catalog
- WhatsApp consultation available on request
